 Description >>

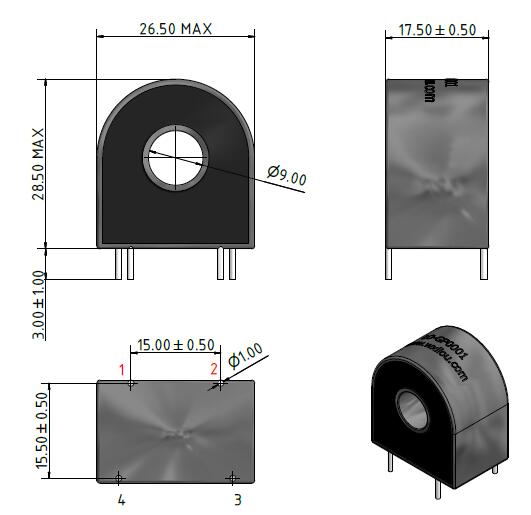

? 20-1000 Hz，SinglePhase，AC CurrentSensor
? Dynamic Range from 20 to 200Amps
? Meets IEC62053-21 class 1
? Meets IEC 60044-1 class 0.1 Phase error < 5'
? Very low temperature coefficient
? Meets UL class B (130℃) thermal insulation system
? Meets UL 94V-0
? AC isolation resistance: 4KV for 60s
Application >>
? Electricity meter
? Recording
? Power monitoring
? Energy management
? Alternative energy monitoring

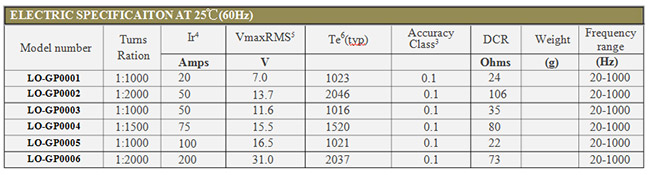

 1.Output voltage is proportional to the derivative(di/dt)of the input current based on the Rogowski Coil principle.
2.All current and voltages assumed to be sinusoidal waveforms at Fr, the constant rated frequency in Hz, measured as RMS value.
3.Accuracy class per IEC60044-1Table 11.
4.Ir=Maximum input current to be linearly sensed
5.VmaxRMS=Maximum voltage (saturation) CT will develop
6.Te=Effective turns ratio including losses
| ABSOLUTE MAXIMUM RATINGS |
Operating free air temperature range
|
-40°C to 85°C |
| Storage temperature range |
-40°C to 100°C |
| SOLDERING INFORMATION |
| Peak wave solder temperature |
300oC for 10Seconds |
| Pin finish |
Tin |
|
]
