 Description >>

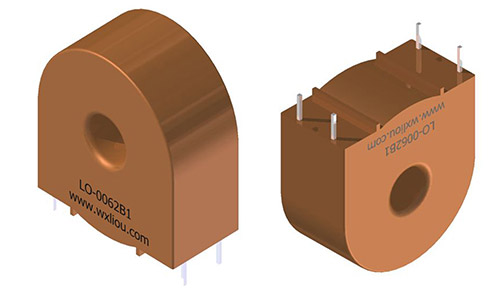

The LO-0062B1 series of current sense transformers are designed to monitor AC currents. They can be
used for
high frequency current sensing, for example in switched-mode power supplies, motor control and
electronic lighting ballasts.
Features >>
RoHS compliant
1000, 1500, 2000 & 2500 Turn variants
Primary current up to 15A
50Hz-20kHz frequency range

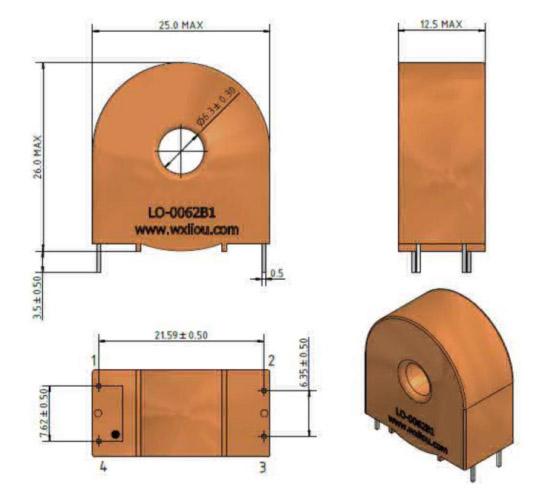

Mechanical Specification >>
 Electric Specification@25C >>
| SELECTION GUIDE |
| Order Code |
Number of
Turns |
Inductance Min. |
DC Resistance |
Terminating Resistance
|
| ±5 Turn |
Pins B&R |
Pins 4-1, ? |
? |
LO-0062B1
|
2000 |
35.4mH @0.3V, 50kHz
|
110MAX
|
100 |
| ABSOLUTE MAXIMUM RATINGS |
| Operating free air temperature range |
-40°C to 85°C |
| Storage temperature range |
-40°C to 100°C |
| SOLDERING INFORMATION |
| Peak wave solder temperature |
300oC for 10Seconds |
| Pin finish |
Tin |
Technical Notes >>
ISOLATION VOLTAGE
All LO-0062B1 current sense transformers are tested at 2500VAC for a minimum of 3 seconds during
our standard test procedure.
In addition, as part of our quali?cation process carried out prior to product launch, the LO-0062B1 series
demonstrated no isolation breakdown at 10kVdc or 6kVac with a bare conductor as the
primary winding. Whilst this does not imply these parts are designed for environments where such high
voltages may be present, it does demonstrate the level of isolation voltage these products are able to
withstand. Full mains safety isolation can be achieved with appropriately insulated wire on the primary
winding. |
]
