 Description >>
? 50/60 Hz，SinglePhase，AC CurrentSensor
? Dynamic Range from 0.01 to 10Amps
? High accuracy class up to 0.002s, Phase error < 0.06'
? Immune to external AC magnetic field. Immune to DC current & DC
magnetic field
? Very low temperature coefficient
? Meets UL class B (130℃) thermal insulation system
? Meets UL 94V-0
? AC isolation resistance: 4KV for 60s
Application >>
? Electricity meter
? Recording
? Power monitoring
? Energy management
? Alternative energy monitoring
|
ELECTRIC
SPECIFICAITON AT 25℃
|
|
Model number
|
Turns Ration
|
Ipri4
|
Iout5
|
Iprimax6
|
Ioutmax7
|
Accuracy
Class
|
RL8
|
Weight
|
Frequency
range
|
|
Amps
|
mA
|
Amps
|
mA
|
|
Ohms
|
(g)
|
(Hz)
|
|
LO-EM0007
|
1:300
|
1.5
|
5
|
10
|
30
|
0.01
|
10
|
|
50-60
|
|
LO-EM0008
|
1:300
|
1.5
|
5
|
10
|
30
|
0.005
|
10
|
|
|
LO-EM0009
|
1:300
|
1.5
|
5
|
10
|
30
|
0.002
|
10
|
|
|
LO-EM0010
|
1:300
|
0.3
|
1
|
1.2
|
4
|
0.01
|
10
|
|
|
LO-EM0011
|
1:300
|
0.3
|
1
|
1.2
|
4
|
0.005
|
10
|
|
|
LO-EM0012
|
1:300
|
0.3
|
1
|
1.2
|
4
|
0.002
|
10
|
|
|
LO-EM0013
|
1:300
|
0.3
|
1
|
6
|
2
|
0.01
|
10
|
|
|
LO-EM0014
|
1:300
|
0.3
|
1
|
6
|
2
|
0.005
|
10
|
|
|
LO-EM0015
|
1:300
|
0.3
|
1
|
6
|
2
|
0.002
|
10
|
|
Note: 1.Output voltage is proportional to the derivative(di/dt)of the input current based on the Rogowski Coil principle.
2.All current and voltages assumed to be sinusoidal waveforms at Fr, the constant rated frequency in Hz, measured as RMS value.
3.Ipri=Rated primary current.
4.Iout=Rated secondary current.
5.Iprimax=Sensed max primary current.
6.Loutmax=Sensed max secondary current.

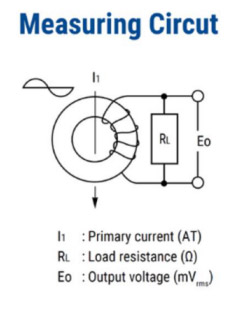

7.RL =Terminating resistance. Varying terminating resistance increases or decreases output Voltage /Ampers according to following
equation RL=Vout*Nsec/Ipri
| ABSOLUTE MAXIMUM RATINGS |
Operating free air temperature range
|
-40°C to 85°C |
| Storage temperature range |
-40°C to 100°C |
| LEADS INFORMATION |
| 24AWG UL1569 Lead wires |
Leads length:70±5mm |
| Stripped and tinned |
3±1mm |
|
]
