 Description >>

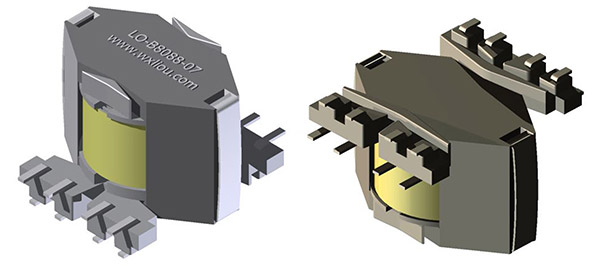

SMD RM6 4+4 Switching transformer normally used for DC-DC,AC-DC converters ,low profile and high
power density
power supplies.We can offer customer-made parts according to different electric specifications and
professional
technical assistances in the process of new parts developing .For more technical informaiton,please feel
free to
contact us by trade manager or below contact informaiton.

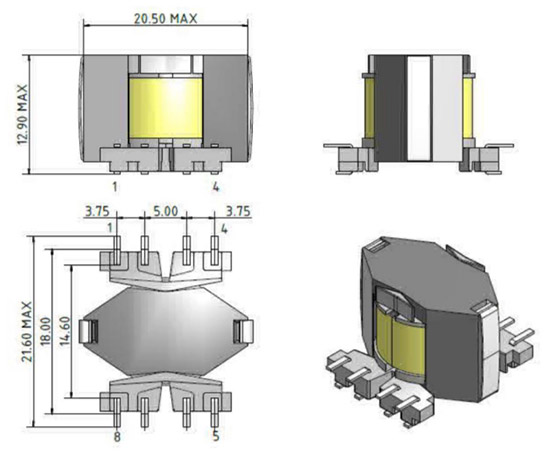

Mechanical Specifications >>
Electric Specification >>
| NO. |
ITEM |
TERMINAL |
SPEC |
REMARKS |
| 1 |
INDUCTANCE |
2-1 |
82.8uH-101.2uH |
LCR METER
AT 120KHz / 0.1V |
| 2 |
HI-POT TEST |
PIN2,3-PIN8,6 |
AC1000V,2s,5mA |
CS2672 or EQU |
| P,S-CORE |
| 3 |
DCR |
2-1 |
220mΩMA |
YY2511 or EQU |
| 8-7,6-5,3-4 |
100mΩMAX |

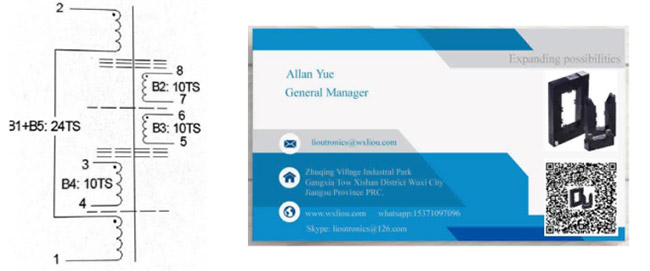

Schemtical Diagram >>
|
]
